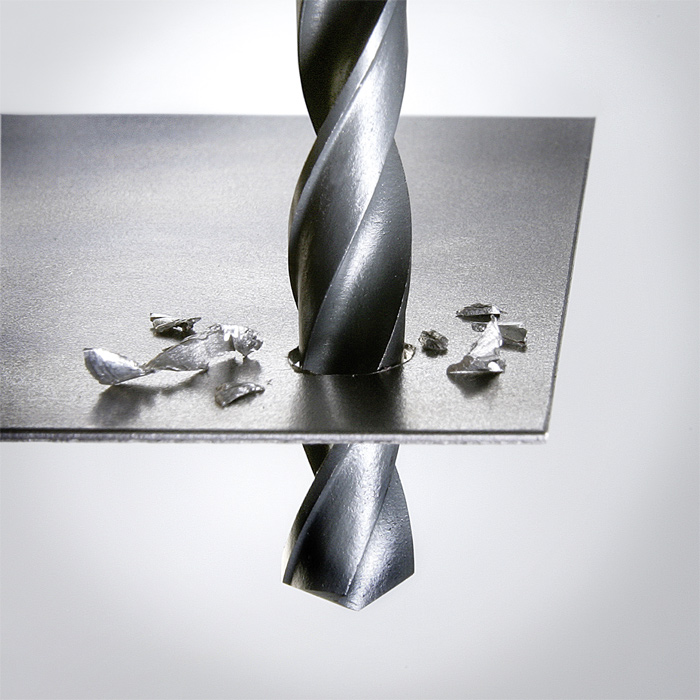

HSS Twist Drill Bit Roll-Forged, DIN338

DIN 338, right hand cut, type N, roll forged, blue-black colour, steam hardened, tip angle 118 deg, for eg alloyed and mild steel, castings, non-ferrous metals, hard plastics.

Art.-Nr.	Ø mm	Tapping hole for thread size	e	Rivet Diameter	Working Length	d mm	Fitting	Content

Art.-Nr.	Ø mm	Tapping hole for thread size	e	Rivet Diameter	Working Length	d mm	Fitting	Content
209610	1		34		12	1	Round Shank	2
209615	1,5		40		18	1,5	Round Shank	2
209620	2		49		24	2	Round Shank	2
209625	2,5	M3	57	2,4	30	2,5	Round Shank	2
209630	3	M3,5	61		33	3	Round Shank	2
209632	3,2		65		36	3,2	Round Shank	1
209633	3,3	M4	65	3,2	36	3,3	Round Shank	1
209635	3,5		70		39	3,5	Round Shank	1
209640	4		75		43	4	Round Shank	1
209642	4,2	M5	75		43	4,2	Round Shank	1
209645	4,5		80		47	4,5	Round Shank	1
209648	4,8		86	4,8	52	4,8	Round Shank	1
209650	5	M6	86		52	5	Round Shank	1
209655	5,5		93		57	5,5	Round Shank	1
209660	6	M7	93	6	57	6	Round Shank	1
209665	6,5		101	6,4	63	6,5	Round Shank	1
209668	6,8	M8	109		69	6,8	Round Shank	1
209670	7		109		69	7	Round Shank	1
209675	7,5		109		69	7,5	Round Shank	1
209680	8		117		75	8	Round Shank	1
209685	8,5	M10	117		75	8,5	Round Shank	1
209690	9		125		81	9	Round Shank	1
209700	10		133		87	10	Round Shank	1
209705	10,5		133		87	10,5	Round Shank	1
209710	11		142		94	11	Round Shank	1
209720	12		151		101	12	Round Shank	1
209730	13		151		101	13	Round Shank	1
